Air Tools
Gison Pneumatic Tools
Straight Die Grinders

Part # GP-824F1

GP-824F1 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 3,500 rpm
Net Weight : 0.89 kg
Length : 218 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 6 mm
Air Pressure : 90 psi

Part # GP-824ST

GP-824ST 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 21,000 rpm
Net Weight : 0.83 kg
Length : 176 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824

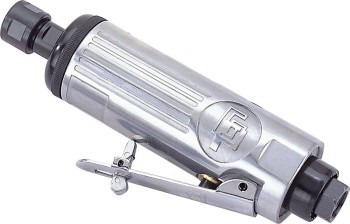

GP-824 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 22,000 rpm
Net Weight : 0.70 kg
Length : 168 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824T

GP-824T 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 22,000 rpm
Net Weight : 0.46 kg
Length : 146 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824ST1

GP-824ST1 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 25,000 rpm
Net Weight : 0.4 kg
Length : 155 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824F

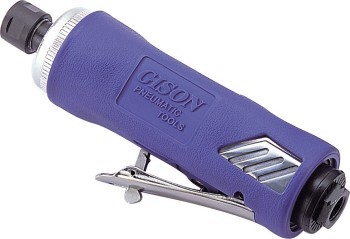

GP-824F 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 22,000 rpm
Net Weight : 0.71 kg
Length : 177 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 6 mm
Air Pressure : 90 psi

Part # GP-824B

GP-824B 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 25,000 rpm
Net Weight : 0.90 kg
Length : 130 mm
Air Cons. : 9.9 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824LG

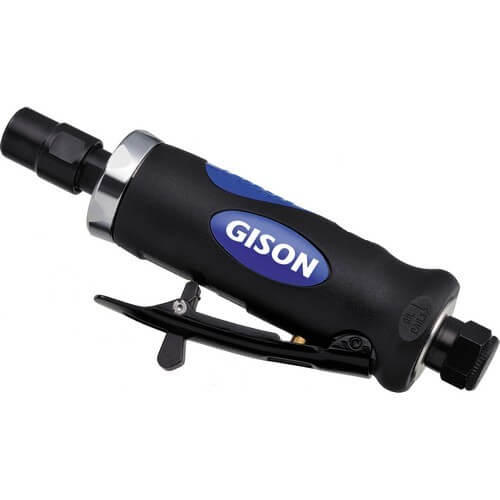

GP-824LG 1/4" Straight Die Grinder

Collet Size : 1/4"
Max Speed : 20,000 rpm
Net Weight : 0.4 kg
Length : 150 mm
Air Cons. : 9.9 cfm
Air Inlet : 1/4"
Hose Size : 6 mm
Air Pressure : 90 psi

^Top

Angle Die Grinders

Part # GP-824HA

GP-824HA 1/4" Angle Die Grinder

Collet Size : 1/4"
Max Speed : 20,000 rpm
Net Weight : 0.50 kg
Length : 154 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824TA

GP-824TA 1/4" Angle Die Grinder

Collet Size : 1/4"
Max Speed : 20,000 rpm
Net Weight : 0.62 kg
Length : 154 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824STA1

GP-824STA1 1/4" Angle Die Grinder

Collet Size : 1/4"
Max Speed : 20,000 rpm
Net Weight : 0.50 kg
Length : 155 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824CA

GP-824CA 1/4" Angle Die Grinder

Collet Size : 1/4"
Max Speed : 25,000 rpm
Net Weight : 0.70 kg
Length : 142 mm
Air Cons. : 9.9 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824M

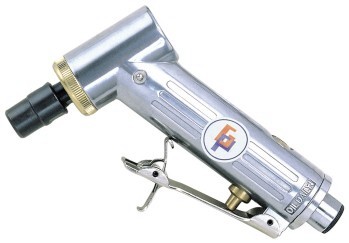

GP-824M 1/4" 110 Deg Angle Die Grinder

Collet Size : 1/4"
Max Speed : 16,000 rpm
Net Weight : 0.66 kg
Length : 170 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi
Head Angle: 110 °

^Top

Extension Die Grinders

Part # GP-824EA

GP-824EA 1/4" Extension Die Grinder

Collet Size : 1/4"
Max Speed : 20,000 rpm
Net Weight : 1.15 kg
Length : 333 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824EB

GP-824EB 1/4" Extension Die Grinder

Collet Size : 1/4"
Max Speed : 20,000 rpm
Net Weight : 0.69 kg
Length : 295 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824EC

GP-824EC 1/4" Extension Die Grinder

Collet Size : 1/4"
Max Speed : 22,000 rpm
Net Weight : 1.05 kg
Length : 319 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824ED

GP-824ED 1/4" Extension Die Grinder

Collet Size : 1/4"
Max Speed : 24,000 rpm
Net Weight : 0.65 kg
Length : 248 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-824STE

GP-824STE 1/4" Extension Die Grinder

Collet Size : 1/4"
Max Speed : 20,000 rpm
Net Weight : 1.0 kg
Length : 282 mm
Air Cons. : 8.2 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

^Top

Micro Die Grinders

Part # GP-8241

GP-8241 Micro Die Grinder

Max Speed : 22,000 rpm
Net Weight : 0.54 kg
Length : 136 mm
Air Cons. : 7.1 cfm
Air Inlet : 1/4"
Hose Size : 5 mm (ID)
Air Pressure : 90 psi

Part # GP-8240B

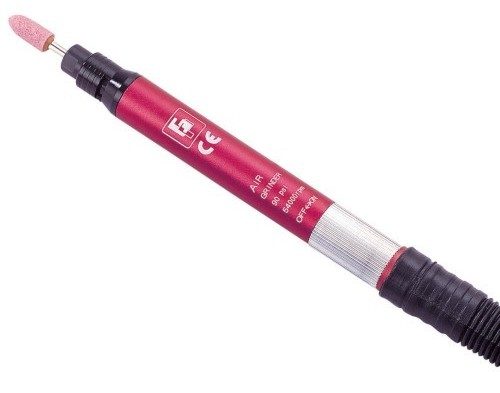

GP-8240B Micro Die Grinder

Collet Size : 1/8"
Max Speed : 54,000 rpm
Net Weight : 0.23 kg
Length : 132 mm
Air Cons. : 8.12 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-8242A

GP-8242A Micro Die Grinder

Collet Size : 1/8"
Max Speed : 80,000 rpm
Net Weight : 0.48 kg
Length : 140 mm
Air Cons. : 5.7 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-8242B

GP-8242B Micro Die Grinder

Collet Size : 1/8"
Max Speed : 70,000 rpm
Net Weight : 0.23 kg
Length : 132 mm
Air Cons. : 7.41 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

Part # GP-8243B

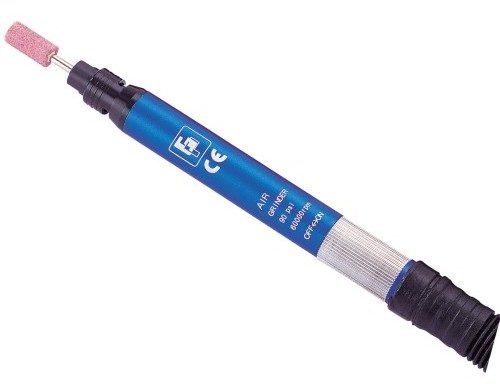

GP-8243B Micro Die Grinder

Collet Size : 1/8"
Max Speed : 60,000 rpm
Net Weight : 0.23 kg
Length : 132 mm
Air Cons. : 7.41 cfm
Air Inlet : 1/4"
Hose Size : 5 mm
Air Pressure : 90 psi

^Top

Die Grinder Kits

Part # GP-824K

GP-824K Die Grinder Kit

Contents :

1 Pc Die Grinder (GP-824)
1 Pc 1/8" Collet
5 Pcs 1/4" Shank Stone
5 Pcs 1/8" Shank Stone
1 Pc Nipple
2 Pcs Key Wrench
1 Pc Plastic Box

Part # GP-824HK

GP-824HK Die Grinder Kit

Contents :

1 Pc Die Grinder (GP-824H)
1 Pc 1/8" Collet
5 Pcs 1/4" Shank Stone
5 Pcs 1/8" Shank Stone
1 Pc Nipple
2 Pcs Key Wrench
1 Pc Plastic Box

Part # GP-8240BK

GP-8240BK Micro Die Grinder Kit

Part # GP-8242BK

GP-8242BK Micro Die Grinder Kit

Part # GP-8243BK

GP-8243BK Micro Die Grinder Kit

Contents :

1 Pc Micro Die Grinder
10 Pcs 1/8" Shank Stone
1 Pc Mini Oiler
1 Pc Oil Pot
2 Pcs Key Wrench
1 Pc Plastic Box

^Top

Tire Buffer

Part # GP-824TB

GP-824TB tire buffer

Metal Wheel : 65 x 30.7 mm
Max Speed : 2,500 rpm
Net Weight : 0.89 kg
Length : 205 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm (ID)
Air Pressure : 90 psi

^Top
