Part # GW-8

Mechanism : One Hammer
Square Drive : 3/8"
Bolt Capacity : 10 mm
Max. Torque : 75 ft.lb(102 Nm)
Net Weight : 1.04 kg
Length : 158mm
Air Cons. : 7.1 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GW-10

Mechanism : Pin Clutch
Square Drive : 3/8"
Bolt Capacity : 13 mm
Max. Torque : 190 ft.lb (258 Nm)
Net Weight : 1.16 kg
Length : 240 mm
Air Cons. : 10.6 cfm
Air Inlet : 1/4"
Hose Size : 10 mm
Air Pressure : 90 psi

Part # GW-10T

Mechanism : Twin Hammer
Square Drive : 3/8"
Bolt Capacity : 13 mm
Max. Torque : 190 ft.lb (258 Nm)
Net Weight : 1.16 kg
Length : 135 mm
Air Cons. : 10.6 cfm
Air Inlet : 1/4"
Hose Size : 10 mm
Air Pressure : 90 psi

Part # GP-951W

Mechanism : Two Hammer
Square Drive : 3/8"
Bolt Capacity : 8 mm
Max. Torque : 90 ft.lb (122 Nm)
Net Weight : 1.14 kg
Length : 203 mm
Air Cons. : 6.4 cfm
Air Inlet : 1/4"
Hose Size : 10 mm
Air Pressure : 90 psi
Handle Exhaust

Part # GW-12C

Mechanism : Jumbo Hammer
Square Drive: 3/8"
Bolt Capacity: 13 mm
Max. Torque: 200 ft.lb (271 Nm)
Net Weight: 1.50 kg
Length: 155 mm
Air Cons: 7.1 cfm
Air Inlet: 1/4"
Hose Size: 10 mm
Air Pressure: 90 psi
Handle Exhaust

Part # GW-12D

Mechanism: Twin Hammer
Square Drive: 3/8"
Bolt Capacity: 13 mm
Max. Torque: 200 ft.lb (271 Nm)
Net Weight: 1.63 kg
Length: 162 mm
Air Cons: 7.1 cfm
Air Inlet: 1/4"
Hose Size: 10 mm
Air Pressure: 90 psi
Handle Exhaust

Part # GP-867W

Mechanism : Two Hammer
Square Drive : 3/8"
Bolt Capacity : 10mm
Max. Torque : 150 ft.lb (203 Nm)
Net Weight : 1.12 kg
Length : 215 mm
Air Cons. : 7.1 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

^Top

Part # GW-11T

Mechanism : Twin Hammer
Square Drive : 1/2"
Bolt Capacity : 16 mm
Max. Torque : 190 ft.lb (258 Nm)
Net Weight : 1.37 kg
Length : 140 mm
Air Cons. : 7.1 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GW-11R

Mechanism : One Hammer
Square Drive : 1/2"
Bolt Capacity : 16 mm
Max. Torque : 125 ft.lb (170 Nm)
Net Weight : 1.37 kg
Length : 140 mm
Air Cons. : 7.1 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GW-15B

Mechanism : One Hammer
Square Drive : 1/2"
Bolt Capacity : 16 mm
Max. Torque : 230 ft.lb (312 Nm)
Net Weight : 2.45 kg
Length : 178 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GW-16H

Mechanism : Pin Clutch
Square Drive : 1/2"
Bolt Capacity : 16 mm
Max. Torque : 280 ft.lb (380 Nm)
Net Weight : 2.30 kg
Length : 180 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

Part # GW-18D

Mechanism : Pin Clutch
Square Drive : 1/2"
Bolt Capacity : 16 mm
Max. Torque : 380 ft.lb (515 Nm)
Net Weight : 2.70 kg
Length : 190 mm
Air Cons. : 7.8 cfm
Air Inlet : 1/4"
Hose Size : 10 mm
Air Pressure : 90 psi

Part # GW-19B

Mechanism : Twin Hammer
Square Drive : 1/2"
Bolt Capacity : 18 mm
Max. Torque : 450 ft.lb (610 Nm)
Net Weight : 2.55 kg
Length : 185 mm
Air Inlet : 1/4"
Air Cons. : 8.2 cfm
Hose Size : 6.5 mm
Air Pressure : 90 psi
Handle Exhaust

Part # GW-19R

Mechanism : Twin Hammer
Square Drive : 1/2"
Bolt Capacity : 18 mm
Max. Torque : 430 ft.lb (588 Nm)
Net Weight : 2.67 kg
Length : 175 mm
Air Inlet : 1/4"
Air Cons. : 8.2 cfm
Hose Size : 6.5 mm
Air Pressure : 90 psi
Handle Exhaust

Part # GW-20T

Mechanism : Twin Hammer
Handle Exhaust
Square Drive : 1/2"
Bolt Capacity : 27 mm
Max. Torque : 750 ft.lb (1017 Nm)
Net Weight : 2.5 kgs
Length : 164 mm
Air Cons. : 0.56 m3/min
Air Inlet : 1/4"
Hose Size : 10 mm

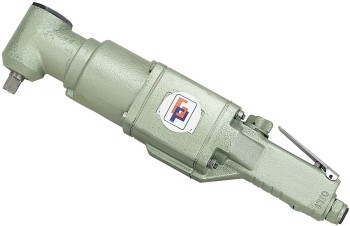

Part # GP-130L90

Mechanism : Two Hammer
Square Drive : 1/2"
Bolt Capacity : 26 mm
Max. Torque : 240 ft.lb (325 Nm)
Net Weight : 4.26 kg
Length : 380 mm
Air Cons. : 8.8 cfm
Air Inlet : 1/4"
Hose Size : 6.5 mm
Air Pressure : 90 psi

^Top

Part # GW-15BK

Contents:

1 Pc 1/2" Impact Wrench (GW-15B)
10 Pcs Socket: 9 ~ 27mm
1 Pc Extension Bar
1 Pc Nipple
1 Pc Oil Pot
1 Pc Hex. Key Wrench
1 Pc Mini Oiler
1 Pc Plastic Box

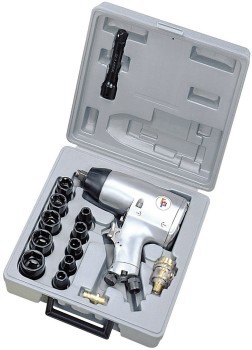

Part # GW-16HK

Contents:

1 Pc 1/2" Air Impact Wrench (GW-16H)
10 Pcs Socket 9 ~ 27 mm
1 Pc Extension Bar
1 Pc Nipple
1 Pc Oil Pot
1 Pc Hex. Key Wrench
1 Pc Mini Oiler
1 Pc Plastic Box

Part # GW-18DK

Contents:

1 Pc 1/2" Air Impact Wrench (GW-18D)
10 Pcs Socket 9 ~ 27 mm
1 Pc Extension Bar
1 Pc Nipple
1 Pc Oil Pot
1 Pc Hex. Key Wrench
1 Pc Mini Oiler
1 Pc Plastic Box

Part # GW-15BRK

Contents:

1 Pc 1/2" Impact Wrench (GW-15B)
1 Pc 1/2" Ratchet Wrench (GP-856)
10 Pcs Socket: 9 ~ 27mm
1 Pc Extension Bar
1 Pc Nipple
1 Pc Mini Oiler
1 Pc Oil Pot
1 Pc Hex. Key Wrench
1 Pc Plastic Box

Part # GW-15BDK

Contents :

1 Pc 1/2" Impact Wrench (GW-15B)
10 Pcs Socket, 5" Extension Bar And 3/8" x 1/2" Adapter
1 Pc Dual Action Sander(GP-828) with 6" Pad
1 Pc Rear Exhaust Die Grinder GP-824
10 Pcs Mounted Points
1 Pc 3/8" Drill w/4 Pcs Bit (GP-840S)
1 Pc Air Hammer (GP-150)
4 Pcs ChiseL
1 Pc Retainer
Mini Oiler, Hex. Key Wrench, Oil Pot, Nipple

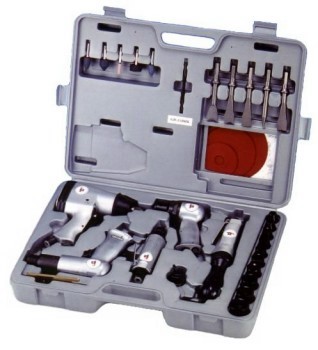

Part # GW-15BHK

Contents :

1 Pc 1/2" Impact Wrench (GW-15B)
10 Pcs Socket
1 Pc Air Hammer (GP-190)
5 Pcs Chisel
1 Pc Retainer
1 Pc 5" HI-Speed Sander (GP-823G)
1 Pc Rear Exhaust Die Grinder (GP-824)
1 Pc 1/2" Ratchet Wrench (GP-856)
Mini Oiler, Hex. Key Wrench, Oil Pot, Nipple
